A few years ago, Keppenne and Ghil (1992a,b; see also issues of this
Bulletin before December 1995) introduced a methodology to forecast the
Southern Oscillation Index (SOI) by applying the maximum entropy method
(MEM) to produce autoregressive forecasts of a set of adaptively filtered
time series resulting from the application of singular spectrum analysis
(SSA) to the raw monthly mean SOI. The success of this methodology has
led to the development of a multivariate prediction scheme based on the
same concepts, but with the substitution of multivariate SSA for univariate
SSA (Keppenne and Ghil 1993, Jiang et al. 1995). The technique used now
contains improvements to the linear prediction scheme used to issue the
SSA/MEM predictions presented previously.
First, the data base used to compute the forecasts now extends backward
to 1881, thanks to our new variation of SSA capable of handling the occasional
missing values. Most data adaptive statistical prediction methods are best
understood in terms of an "analog forecast" (e.g. Toth 1991,
Huang et al. 1993, Livezey et al. 1994). Thus, the extension of the data
base increases the likelihood of identifying a suitable "analog"
that help determine the forecast's basis functions. This process forecasts
the real and imaginary parts of the SOI's leading four complex principal
components (CPCs) using a variation of multivariate adaptive regression
splines (MARS: Friedman 1991, Lewis and Stevens 1991, Lall et al. 1996),
a nonlinear data-adaptive statistical method.
Second, in contrast with our earlier work (Keppenne and Ghil 1992a,b) in
which SSA was applied to the difference between the Tahiti and Darwin normalized
SLP time series, we apply CSSA to the complex time series whose real and
imaginary parts consist in the Darwin and Tahiti SLP, forecast the real
and imaginary parts of the resulting CPCs separately, and then take their
differences to construct a forecast for the filtered SOI. This procedural
modification enhances the forecast skill, because taking the difference
between two separately CSSA-filtered time series increases the noise-to-signal
ratio.
Third, we have replaced the linear autoregressive MEM system by the skill-preserving,
analog-like nonlinear MARS methodology. MARS has advantages discussed in
earlier issues of this Bulletin. In our variation of MARS, appropriate
"neighbors" of the prevailing climate conditions are identified
in the phase space; regression-splines are then used to develop the predictions.
More detail about this procedure is provided in Keppenne and Lall (1995,
1996).
The evaluation of the algorithm's forecast skill uses a "retroactive
real-time" simulation in which only forward-looking hindcasts are
developed. As detailed in the December 1995 and March 1996 issues of this
Bulletin, the MARS model dramatically outperforms the MEM models at leads
of less than 2.5 years.
The latest CSSA-MARS forecast is shown in Fig. 1. The system predicts a
return to normal conditions by winter 1996-97, followed by another weak
La Nina beginning in winter 1997-98 and lasting through much of 1998. Then
a return to El Niño-like conditions is predicted for late 1999 to
2000. This differs from the forecast issued 3 months ago, in which a trend
toward lower SOI was to occur in late 1996 and during 1997 without a second
weak La Nina beforehand.
References
Friedman, J.H., 1991: Multivariate adaptive regression splines. Ann
Stat, 19, 1-50.
Huang, J.P., Y.H. Yi, S.W. Wang and J.F. Chou, 1993: An analog-dynamic
long-range numerical weather prediction system incorporating historical
evolution. Q J R Met. Soc., 119, 547-565.
Jiang, N., M. Ghil and D. Neelin, 1995: Forecasts of equatorial Pacific
SST using an autoregressive process using singular spectrum analysis. Exp.
Long-Lead Forcst. Bull., 4, No. 1, 24-27.
Keppenne, C.L. and M. Ghil, 1992a: Forecasting extreme weather events.
Nature, 358, 547.
Keppenne, C.L. and M. Ghil, 1992b: Adaptive Spectral Analysis and Prediction
of the Southern Oscillation Index. J. Geophys. Res., 97, 20449-20554.
Keppenne, C.L. and M. Ghil, 1993: Adaptive filtering and prediction of
noisy multi-variate signals: an application to atmospheric angular momentum.
Intl. J. Bifurcations and Chaos, 3, 625-634.
Keppenne, C.L. and U. Lall, 1995: A new methodology to forecast paleoclimate
time series with application to the Southern Oscillation index. EOS Trans
AGU. 1995 Fall Meeting Supplement, 76, F327.
Keppenne, C.L. and U. Lall, 1996: Complex singular spectrum analysis and
multivariate adaptive regression splines applied to forecasting the Southern
Oscillation. J. Clim., 9, submitted.
Lall, U., T. Sangoyomi and H.D. Abarbanel, 1996: Nonlinear dynamics of
the Great Salt Lake: nonparametric short term forecasting. Water Resources
Res., in press.
Lewis, P.A.W. and J.G. Stevens, 1991: Nonlinear modeling of time series
using multivariate adaptive regression splines (MARS). J. Amer. Stat. Assoc.,
86, 864-877.
Livezey, R.E., A.G. Barnston, G.V. Gruza and E.Y. Rankova, 1994: Comparative
skill of 2 analog seasonal temperature prediction systems: Objective selection
of predictors. J. Clim., 7, 608-615.
Toth, Z., 1991: Estimation of atmospheric predictability by circulation
analogs. Mon. Wea. Rev., 119, 65-72.
Figures

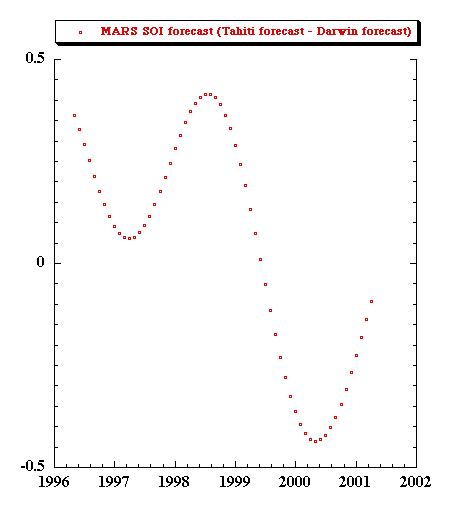

Fig. 1. The application of a variant of multivariate adaptive regression splines (MARS) to the real and imaginary parts of the leading four complex principal components (CPCs) resulting from a CSSA yields this forecast for the SOI for the remainder of 1996 through early 2001.
