Because excellent naturally occurring analogues are highly unlikely
to occur, we may benefit from constructing an analogue having greater similarity
than the best natural analogue. As described in Van den Dool (1994), the
construction is a linear combination of observed anomaly patterns in the
predictor fields such that the combination is as close as desired to the
base. Here, we forecast the future SST anomaly in the ENSO-related east-central
tropical Pacific ("Niño 3.4", or 5oN-5oS,
120-170oW). We use as our predictor (the analogue selection
criterion) the first 5 EOFs of the global SST field at four consecutive
3-month periods prior to forecast time. Predictor and predictand data extending
from 1955 to the present are used for a priori skill evaluation.
For any given base time (i.e. previous ones extending back to 1955, or
the current "operational forecast" ending with August 1996),
a linear combination is made of the global SST patterns (using the first
5 EOFs) from all 39 years (excluding the base year), so as to match the
SST pattern of the base time as closely as possible. This is done by classical
least-squares multiple regression, with each year's SST state as a predictor
to which a weight is assigned, determined by inverting the 39 X 39 (available
years) covariance matrix. The weights assigned each year to reconstruct
the base SST state are then applied to the subsequently occurring Niño
3.4 SST in the predictand period for these years, thereby constructing
the forecast for the base year's predictand period.
Additional detail about the constructed analogue method is found in the
September 1994 issue of this Bulletin and in Van den Dool (1994). In the
latter paper it is shown that constructed analogues outperform natural
analogues in specification mode (i.e. "forecasting" one meteorological
variable from another, contemporaneously). This advantage may be expected
to occur in actual forecasting also, as long as the (linear) construction
does not compromise the physics of the system too much. Brief discussion
of the skill of the constructed analogue method in forecasting SST is given
in Van den Dool and Barnston (1995).
The forecasts for Niño 3.4 for 0 to about 1.5 years lead using constructed
analogues are shown in Fig. 1, using data through August 1996. The expected
cross-validated skill is also shown. In Fig. 1 the SST anomaly observed
during Jun-Jul-Aug 1996 is plotted as the earliest "forecast"
value. For Jul-Aug-Sep and Aug-Sep-Oct the observed SST for Jun-Jul-Aug
enters into the plotted forecast with a 2/3 and 1/3 weight, respectively,
providing continuity with the known initial condition.
A closer look at the skill of the constructed analogue method is provided
by Fig. 2 in the June 1996 issue of this Bulletin (p. 73). The skill is
competitive with those of other empirical as well as dynamical methods
(Barnston et al. 1994). Forecasts for late fall through winter tend to
be most skillful at short as well as long lead times, while summer forecasts
have relatively lower skill. While skill (dashed line in Fig. 1) generally
decreases with lead time, the dependence on the target season can sometimes
be a stronger factor.
The presently still slightly below normal SST conditions are forecast to
return to normal by late fall/early winter 1996-97, becoming slightly warm
by spring 1997 and still warmer for winter 1997-98.
Table 1 provides information about the role of each of the past years in
the construction process for the current forecasts. The inner product shows
the degree of similarity (or, if negative, dissimilarity) of this year's
predictor periods to those of the other years. The weight shows the contribution
of each year's pattern to the constructed analogue. The inner products
and the weights, while similar, are not proportional. This is because,
for example, two analogues having the same kind of similarity are
unnecessary; only one of them may have been assigned the appropriately
high weight, leaving the other with little to contribute.
The important positive (+) and negative (-) contributors to the description
of the global SST over the last 4 seasons (SON 1995 to JJA 1996) are, in
chronological order, 1966(-), 1973(-), 1976(-), 1983(-), 1984(+), 1986(+),
1988(+), 1989(+), and 1990(+). An interdecadal variability in this analogue
time series is suggested by the temporal grouping of like-signs. The weights
have been mainly positive from 1984 to the present, suggesting that the
present SST configuration is typical for the last 11 years and atypical
for certain groups of years before 1984 such as the mid-1960s and most
of the 1970s.
The result of the process is a forecast for a continued trend toward warming
but still near normal SST followed by weak warmth from spring 1997 onward.
The SST reaches moderately warm levels late in 1997 and into the following
winter. Looking at some of the strongly weighted years, we note that the
most strongly positively weighted year had been strongly cold and was returning
to normal (e.g. 1989, which denotes the period of September 1988 to August
1989). Another year with positive weight was somewhat cold (1984), or cool
but about to become very warm (1986). However, 1988 had been warm and was
beginning to cool rapidly. Among the four strongly negatively weighted
years, three had been warm and were in the process of cooling (1966, 1973
and 1983), but 1976 had been warm and was cooling. Thus, there is a tendency
for negative weights to be assigned to warm episode years that were beginning
to cool, and vice versa. This is quite reasonable in view of the cool episode
that has now all but concluded. However, the appearance of strong positive
or negative weights for years that do not follow this simple pattern indicates
that phenomena other than ENSO are determining the weighting process and
the resulting forecast. The weights shown in Table 1 suggest the existence
of phenomena that vary on decadal or even longer-term time scales. While
ENSO may "piggy-back" on these lower frequency oscillations to
some extent, its variance is largely separate from theirs.
Table 1. Inner products (IP; scaled such that sum of absolute values is
100) and weights (Wt; from multiple regression) of each of the years to
construct an analogue to the sequence of 4 consecutive 3-month periods
defined as the base (SON '95, DJF '95-96, MAM '96, and JJA '96). Years
are labeled by the middle month of the last of the four predictor seasons.
Yr |
IP |
WT |
Yr |
IP |
Wt |
Yr |
IP |
Wt |
||
----- | ----- | ----- | ----- | ----- | ----- | ----- | ----- | ----- | ||
56 |
-1 |
3 |
69 |
1 |
3 |
82 |
3 |
5 |
||
57 |
-2 |
-1 |
70 |
3 |
7 |
83 |
-1 |
-11 |
||
58 |
-1 |
-3 |
71 |
-1 |
3 |
84 |
6 |
10 |
||
59 |
-1 |
2 |
72 |
-4 |
-9 |
85 |
4 |
5 |
||
60 |
-2 |
2 |
73 |
-2 |
-12 |
86 |
5 |
10 |
||
61 |
0 |
4 |
74 |
-1 |
-2 |
87 |
1 |
-1 |
||
62 |
0 |
1 |
75 |
-3 |
-8 |
88 |
3 |
12 |
||
63 |
2 |
3 |
76 |
-3 |
-13 |
89 |
5 |
16 |
||
64 |
-1 |
-5 |
77 |
-7 |
-8 |
90 |
8 |
11 |
||
65 |
-4 |
-7 |
78 |
-4 |
-6 |
91 |
4 |
9 |
||
66 |
-5 |
-11 |
79 |
-7 |
2 |
92 |
1 |
1 |
||
67 |
-1 |
-1 |
80 |
0 |
-1 |
93 |
0 |
0 |
||
68 |
-1 |
0 |
81 |
2 |
7 |
94 |
3 |
1 |
References
Barnston, A.G., H.M. van den Dool, S.E. Zebiak, T.P. Barnett, M.
Ji, D.R. Rodenhuis, M.A. Cane, A. Leetmaa, N.E. Graham, C.F. Ropelewski,
V.E. Kousky, E.A. O'Lenic and R.E. Livezey, 1994: Long-lead seasonal forecasts--Where
do we stand? Bull. Amer. Meteor. Soc., 75, 2097-2114.
van den Dool, H.M., 1994: Searching for analogues, how long must we wait?
Tellus, 46A, 314-324.
van den Dool, H.M. and A.G. Barnston, 1995: Forecasts of global sea surface
temperature out to a year using the constructed analogue method. Proceedings
of the 19th Annual Climate Diagnostics Workshop, November 14-18, 1994,
College Park, Maryland, 416-419.
Figures

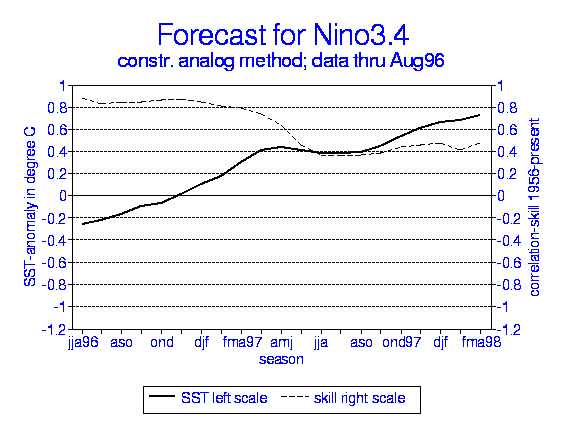

Fig. 1. Time series of constructed analogue forecasts (solid line)
for Niño 3.4 SST based on the sequence of four consecutive 3-month
periods ending in August 1996. The dashed line indicates the expected skill
(correlation) based on historical performance for 1956-95. The x-axis represents
the target period. The verifying observation is shown instead of the constructed
analogue specification for Jun-Jul-Aug 1996, and this observation also
contributes by decreasing amounts to the Jul-Aug-Sep and Aug-Sep-Oct plotted
values (see text).
