Precipitation Forecasts for the Tropical Pacific Islands
Using Canonical Correlation Analysis (CCA)
contributed by Yuxiang He and Anthony Barnston
Climate Prediction Center, NOAA, Camp Springs,
Maryland
In canonical correlation analysis (CCA), relation-ships
between multicomponent predictors and multi-component predictands are linearly
modeled. These typically take the form of patterntopattern relation-ships
in space and/or time. CCA is designed to minimize squared error in hindcasting
linear combinations of predictand elements from linear combinations of
the predictor elements.
CCA has been used in the social sciences for many decades,
but only in the last 10 years has it begun being used in the atmospheric
sciences. For example, Barnett and Preisendorfer (1987) applied CCA to
monthly and seasonal prediction of U.S. temperature. Graham et al. (1987a,b)
and Barnston and Ropelewski (1992) applied it to predicting aspects of
the ENSO phenomenon, and Barnston (1994) forecasted short-term climate
anomalies in the Northern Hemisphere. Recently, Barnston and He (1996)
explored CCA as a tool for seasonal temperature and precipitation forecasts
for Hawaii and Alaska. The skills resulting from the latter two studies,
while generally modest, were high enough for the U.S. National Weather
Service to use the forecasts on a real-time, operational basis.
Here, CCA is used to predict 3-month total precipitation
anomalies in the Pacific Islands out to a year in advance, as described
in He and Barnston (1996). It is well known that rainfall in the tropical
and subtropical Pacific is strongly related to ENSO (Ropelewski and Halpert
1987, 1996). Therefore it is worthwhile to set up a seasonal prediction
system that produces real-time forecasts on a monthly basis for the benefit
of agricultural and commercial interests in the Pacific Islands.
The predictor fields used for the forecasts include quasiglobal
sea surface temperature (SST), Northern Hemisphere 700 mb geopotential
height, and the predictand precipitation itself (33 island stations) at
an earlier time. Experiments with different subsets of predictors and predictor
field weights showed that the most valuable predictor field is SST, with
700 mb heights and prior precipitation somewhat helpful. The SST predictors
are therefore given double their natural weight. This helps prevent overfitting
to Alucky@ relationships with other predictors over the relatively short
(1955-present) period of record. Further details about the skills, the
underlying relationships, and the need to weight the SST double are provided
in He and Barnston (1996). The set of predictors is configured as four
consecutive 3month periods prior to the time of the forecast, followed
by a variable lead time, and then a single 3-month predictand period. The
predictand includes 3-month total rainfall at 33 Pacific Island stations
within 25oN-30oS, including 4 Hawaiian stations.
The lead time is defined as the time between the end of the final (fourth)
predictor period (i.e., the time of the forecast) and the beginning
of the 3-month predictand period. This strict definition contrasts with
that in which the shortest lead forecast would be called 3-month lead instead
of zero lead.
The expected skill of the forecasts was estimated using
cross-validation, in which each year in turn was held out of the model
development sample and used as the forecast target. These skill estimates
indicated that at 1 month lead time the highest correlation skill across
the Pacific Islands occurs in Jan-Feb-Mar at 0.44 (0.29) averaged over
all stations north (south) of the equator, and the lowest occurs from September
through December at about 0.15 (0.30) for stations north (south) of the
equator. At four months lead skills are only slightly lower except for
the Jan-Feb-Mar average skill north of the equator which drops significantly
to 0.26.
Figure 1a shows standardized precipitation anomaly forecasts
for 33 Pacific Island stations for Feb-Mar-Apr 1997 made using data through
May 1996 (8 months lead). The geographical distribution of expected skill
for this forecast, based on cross-validation, is shown in part (b) in terms
of a temporal correlation between forecasts and observations. These
precipitation anomaly forecasts for late winter are weak in amplitude,
even at stations where skill is moderately high (e.g. Johnston [r=0.47]
or Yap [r=0.51]), where the forecasts could have high amplitude if the
predictor values were indicative. This makes sense in view of the current
ENSO situation. We have had a mild to medium cold episode over the last
year, but are now in a period of weak SST anomalies at the time of year
when the likely phase of ENSO for winter 1996-97 is already somewhat determined
by what we have now. If a strong reversal to warm conditions were in the
offing, the transition to the warm side of the mean should have taken place
by now. We could still, however, be in somewhat of a transition period
and headed for mild warm conditions by November 1996. The implication of
the forecast is that winter 1996-97 will be approximately a neutral year,
and thus ENSO impacts on rainfall will be weak.
More detailed forecasts for 9 U.S.-affiliated Pacific
Island stations, located as shown in Fig. 2, are provided in Fig. 3. In
the latter figure, long-lead rainfall forecasts from 1 to 13 seasons lead
are shown (solid bars), along with their expected skills (lines). The horizontal
axis reflects the lead time, whose corresponding actual target period for
this forecast is indicated in the legend along the top of the figure (e.g.
1=Jul-Aug-Sep 1996). The same ordinate scale is used for both forecasts
and skills (standardized anomaly and correlation, respectively). The skill
curve applies to the target season for the associated lead time of the
present forecast. Sometimes a Areturn of skill@ occurs as the lead is increased
because a more forecastable target season has been reached. The forecasts
and their skills differ as a result of both location differences within
the Pacific basin and differences in orientation with respect to the local
orography (if any) and subsequent exposure to the prevailing low-level
wind flow.
We note that at most of the U.S. affiliated stations no
substantial anomalies in either direction are predicted in the next 6 months,
but that the forecast for spring 1997 shows a tendency for subnormal
precipitation. The expected skill for the boreal winter and spring
tends to be higher than that for summer and fall despite the longer lead
time. The CCA modes (not shown; He and Barnston 1996) emphasize ENSO as
the leading influence on tropical Pacific climate most strongly during
the months of Nov-Dec-Jan-Feb-Mar-Apr-May (and even earlier than Nov along
the immediate equator near and somewhat east of the dateline). The current
forecast indicates that the predicted rainfall deficits for spring 1997
come as a result of an expectation of warm tropical Pacific ENSO conditions
arising in late winter 1996-97 and increasing in spring. This scenario
warrants close attention over the next few months. If the predictor SST
in the tropical Pacific warms appreciably over this boreal summer, the
CCA could begin predicting warm ENSO conditions setting in earlier, such
as by winter 1996-97. As discussed above, however, given that the Apersistence
period@ is beginning and that warm conditions are not already emerging,
it appears unlikely that a strong warm event will occur as early as winter
1996-97.
References
Barnett, T.P. and R. Preisendorfer, 1987: Origins and
levels of monthly and seasonal forecast skill for United States surface
air temperatures determined by canonical correlation analysis. Mon.
Wea. Rev., 115, 18251850.
Barnston, A.G., 1994: Linear statistical short-term climate
predictive skill in the Northern Hemisphere. J. Climate, 5,
1514-1564.
Barnston, A.G. and C.F. Ropelewski, 1992: Prediction of
ENSO episodes using canonical correlation analysis. J. Climate,
7, 13161345.
Barnston, A.G. and Y. He, 1996: Skill of CCA forecasts
of 3-month mean surface climate in Hawaii and Alaska. J. Climate,
9, accepted.
Graham, N.E., J. Michaelsen and T. Barnett, 1987a: An
investigation of the El NinoSouthern Oscillation cycle with statistical
models. 1. Predictor field characteristics. J. Geophys. Res., 92,
1425114270.
Graham, N.E., J. Machaelsen and T. Barnett, 1987b: An
investigation of the El NinoSouthern Oscillation cycle with statistical
models. 2. Model results. J. Geophys. Res., 92, 1427114289.
He, Y. and A.G. Barnston, 1996: Long-lead forecasts of
seasonal precipitation in the tropical Pacific islands Using CCA. J.
Climate, 9, in press.
Ropelewski, C.F. and M.S. Halpert, 1987: Global and regional scale precipitation patterns associated with the El Nino/Southern Oscillation. Mon. Wea. Rev., 115, 1606-1626.
Ropelewski, C.F., and M.S. Halpert, 1996: Quantifying
Southern Oscillation-precipitation relationships. J. Climate,
9, 1043-1059.

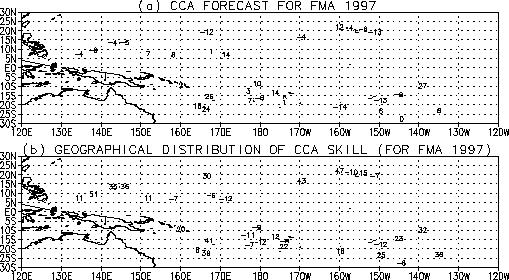

Fig. 1 (a). CCA-derived precipitation standardized
anomaly forecast (X100) for 33 Pacific Islands stations for Feb-Mar-Apr
1997 made at 8 months lead (latest data May 1996). (b): The cross-validated
skill expected for the forecast shown in (a), expressed as a correlation
X100.

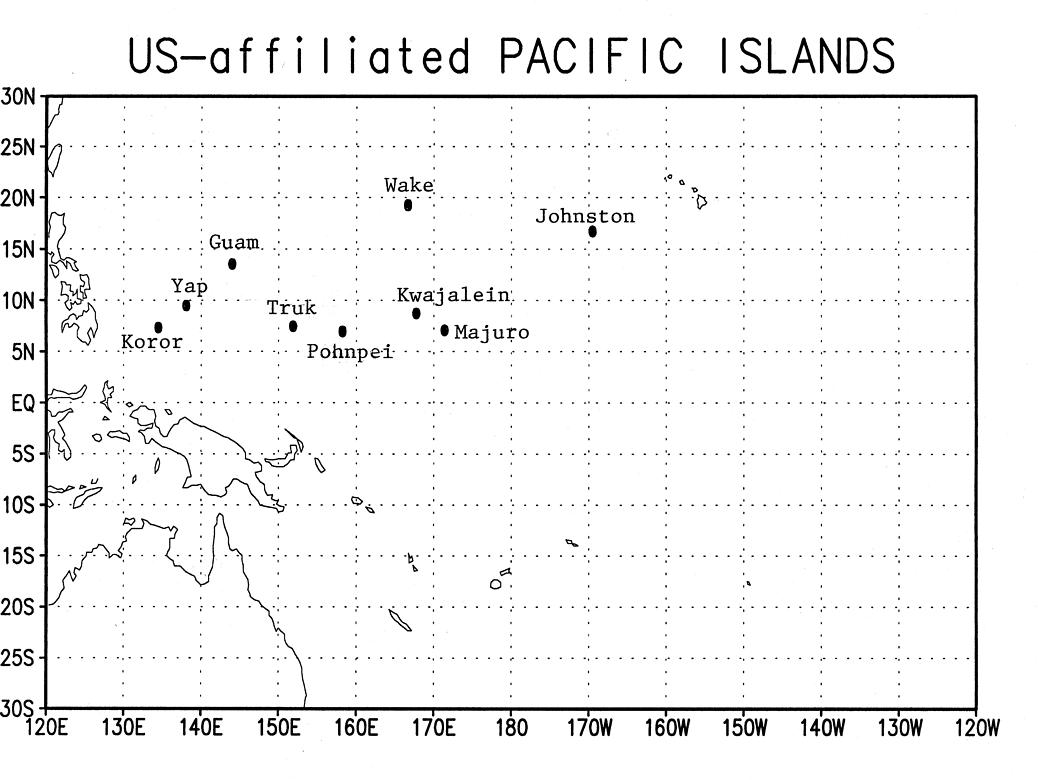

Fig. 2. Locations of the 9 U.S.-affiliated Pacific
Island stations whose long-lead precipitation forecasts are shown in detail
in Fig. 3.

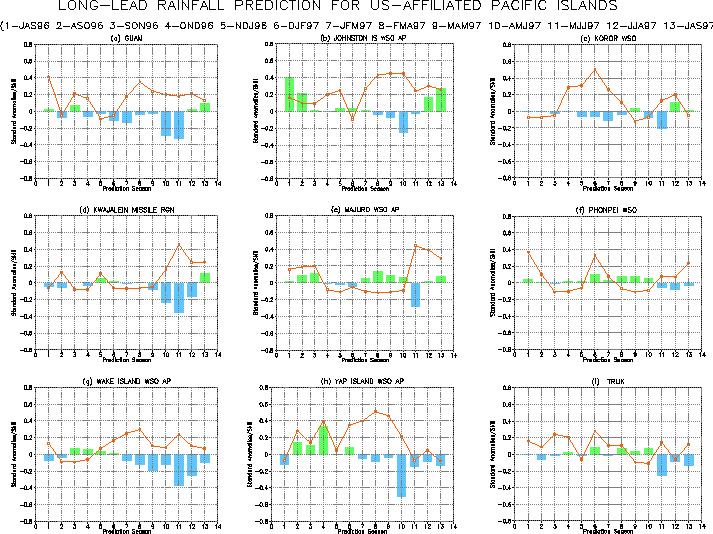

Fig. 3. Time series of CCA-based long-lead precipitation
anomaly forecasts, and their expected skills, out to one year into the
future for 9 U.S.-affiliated Pacific Island stations (see Fig. 2). The
bars indicate the forecast values (as standardized anomalies) and the lines
indicate the associated skills (as correlation coefficients). Both forecasts
and skills use the same ordinate scale. The target season is indicated
on the abscissa, ranging from 1 (Jul-Aug-Sep 1996) through 13 (Jul-Aug-Sep
1997); see the legend at top.
