contributed by Tim Barnett1, David Pierce1,
Nicholas Graham1 and Mojib Latif 2
1Scripps Institution of Oceanography, La Jolla, California
2Max Planck Institut fur Meteorologie, Hamburg,
Germany
In past issues of this Bulletin (e.g. March and June of 1994, September
1995), we introduced forecasts of the tropical Pacific SST using a hybrid
coupled ocean-atmosphere model (HCM) developed jointly at Scripps Institution
and the Max Planck Institute for Meteorology (MPI) (Barnett et al. 1993).
In this issue of the Bulletin, the forecast produced by an improved version
of the HCM is presented and compared with the forecast of the original
HCM. The nature of the original and improved versions of the HCM, differing
mainly in the ocean GCM, is next briefly discussed.
The original ocean model, created at MPI (Latif 1987), is a fully nonlinear
GCM bounded by 30oN and 30oS latitude and by Asia and South America. It
has 13 vertical levels, 10 of which are within the top 300 m. The seasonal
cycle is governed by a Newtonian heat flux and observed wind stress (Goldenberg
and O'Brien 1981). The vertical mixing scheme is dependent upon the Richardson
number (Pacanowski and Philander 1981). The atmospheric model is statistical,
deriving the wind stress forcing for the ocean GCM using the GCM's SST.
This is done with a CCA-like regression model, using historical observed
data fields of anomalous SST and the corresponding wind stress. The coupling
process includes a MOS-like statistical correction of the SST fields produced
by the ocean GCM. The hybrid coupled model is initialized with wind stress
fields derived from observed SST data; thus, it is indirectly "spun
up" with SST information. Over the 1965-93 period the model demonstrated
statistically significant predictive skill out to 12 to 18 months, with
best performance for the central equatorial Pacific and for winter forecasts
(The skill distribution is shown in Barnett et al. 1993 and in the March
1994 issue of this Bulletin.) The model was developed using data from 1965-85,
leaving 1986 and later for independent forecasting. Partly because of the
MOS correction scheme, there is no need for bias correction. However, a
temporal phase postprocessor is applied to the forecasts as a function
of their lead time.
The HCM3
A new and improved version of the HCM, called HCM3, is now developed. The
HCM3 is based on the same strategy used in the original HCM (to be called
HCM1) described above. The main difference is in the ocean GCM used. The
ocean model is the HOPE2 from the Max Planck Institute in Hamburg (Wolff
and Maier-Reimer, 1992). The model resolution is approximately the same
as before. However, the numerical scheme has been improved to significantly
reduce the numerical diffusion, especially in the vertical. The result
is a much better representation of the main thermocline across the tropical
Pacific. A MOS corrector is still used, but in most cases and areas the
magnitude of the correction is 1C and generally less--a distinct improvement
over the old model. Statistical atmospheres were constructed using both
the FSU and the da Silva (da Silva et al. 1994) data sets. Model performance
was independent of which set was used, as long as a 3 to 5 month smoother
was applied to the wind stress prior to model construction. The final model
used the da Silva data for the wind field.
The model performs much better in the hindcast mode than did its predecessor.
Hindcast correlational skill scores exceeding 0.8 for 3 to 6 month lead
times now cover virtually the entire tropical Pacific dropping to 0.6 in
the far western Pacific where the old model had negative skills. The skill
also remains high almost to the South American coast, a region that also
had negative skill in the old model version. Preliminary evaluation of
independent sample forecast skills show they are about comparable to those
of the Lamont and NCEP (formerly NMC) models. As was found with the Lamont
model, the forecast skills for the 1980s and early 1990s in HCM3 are much
higher (exceeding 0.8 over a large region) than were the skills during
the 1970s.
Current Forecast
The HCM1 began in April 1995 to forecast a major warm event for the winter
of 1996-97; this was an 18 month lead forecast. Subsequent HCM1 forecasts,
repeated every month, changed little until March 1996. Then they began
to diminish in magnitude. At the same time, the HCM1 began to initialize
more and more poorly, in that the model SST field began differing from
the observed SST at t=0 to a greater extent in spinning up the model with
the observed SST. The current HCM1 forecast for December 1996 (Fig. 1,
top), although still calling for a mild warm event, represents a small
reduction in the event magnitude over that of the forecast made last month.
Under these conditions, we place low confidence in the forecast.
The current HCM3 forecast (Fig. 1, bottom) is also for a slight warming
of the tropical Pacific to be in place by the coming winter. However, the
magnitude of the warming, roughly 0.3 to 0.6C in an east-west band spanning
the central and eastern equatorial Pacific, is within the standard error
of the HCM3 forecasts. Hence, the forecast is most properly represented
as a call for "normal" conditions in the equatorial Pacific this
winter.
Caveat: The forecasts shown below are experimental in nature. The
reader is forewarned that the methods/forecasts are very new and subject
to future change and improvement.
Acknowledgment: This work is supported by NOAA and the National Science
Foundation's Climate Dynamics Division.
Barnett, T.P., M. Latif, N. Graham, M. Flugel, S. Pazan and W. White,
1993: ENSO and ENSO-related predictability: Part 1 - Prediction of equatorial
Pacific sea surface temperatures with a hybrid coupled ocean-atmosphere
model. J. Climate, 6, 1545-1566.
Da Silva, A.M., C.C.Young and S. Levitus, 1994: Atlas of surface marine
data 1994, Vol. 1: Algorithms and procedures. NOAA Atlas NESDIS 6, U.S.
Department of Commerce, 83 pp.
Goldenberg, S.D. and J.J. O'Brien, 1981: Time and space variability of
tropical Pacific wind stress. Mon. Wea. Rev., 109, 1190-1207.
Latif, M., 1987: Tropical ocean circulation experiments. J. Phys. Oceanogr.,
17, 246-263.
Pacanowski, R.C. and S.G.H. Philander, 1981: Parameterization of vertical
mixing in numerical models of tropical oceans. J. Phys. Oceanogr., 11,
1443-1451.
Pierce, D., J. Ritchie and T.P. Barnett, 1997: An improved hybrid coupled
model for tropical SST prediction. In preparation.
Wolff, J.-O. And E Maier-Reimer, 1992: HOPE, the Hamburg ocean primitive
equation model. 81 pp. Available from Max Planck Institut fur Meteorologie,
Hamburg, Germany.

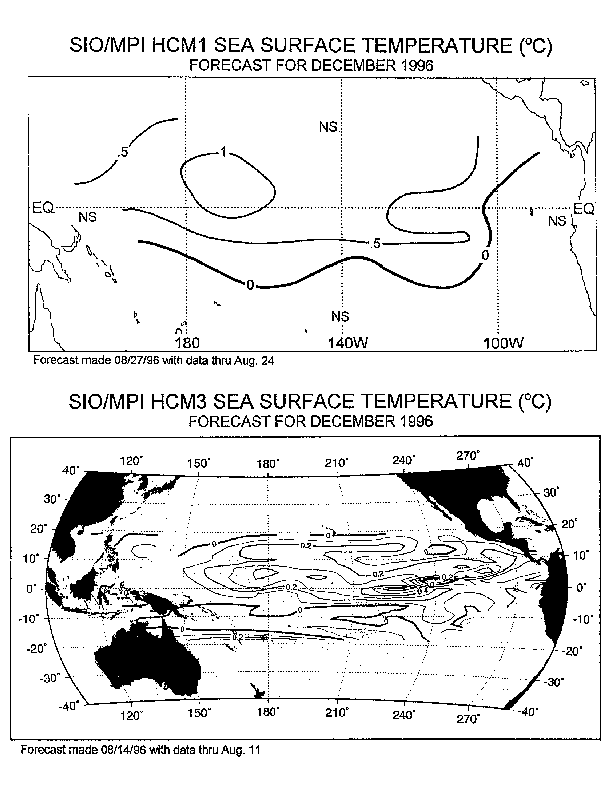

Fig. 1. Scripps/MPI hybrid coupled model forecast of the field of
tropical Pacific SST anomaly (oC) for December, 1996. The top panel shows
the forecast using the original model (HCM1) and the bottom panel shows
the forecast using the new and improved HCM model version (HCM3). Observed
data up to August 1996 are used, the final day of which is shown beneath
each respective panel.
