APRIL 2012

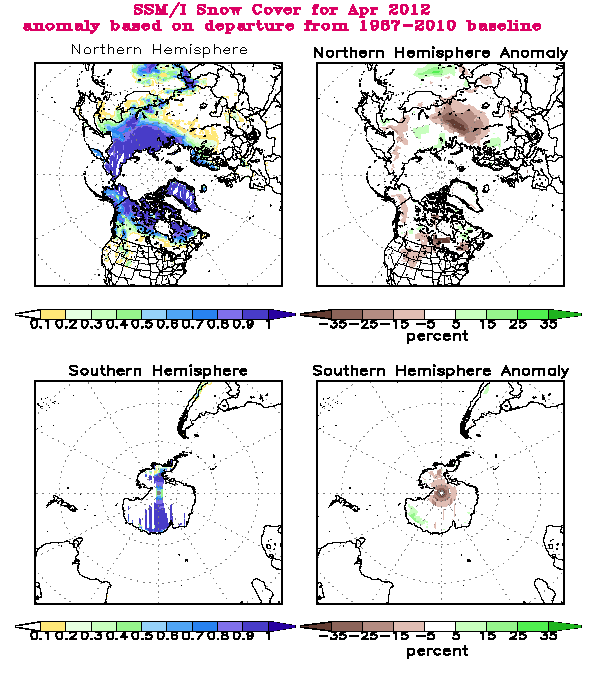

FIGURE A2.2.  SSM/I derived snow cover frequency (%) (left) and snow cover anomaly (%) (right). Based on 1987-2010 base period for the Northern Hemisphere (top) and Southern Hemisphere (bottom). It is generated using the algorithm described by Ferraro et al, 1996, Bull. Amer. Meteor. Soc., vol 77, 891-905.
